Details

---

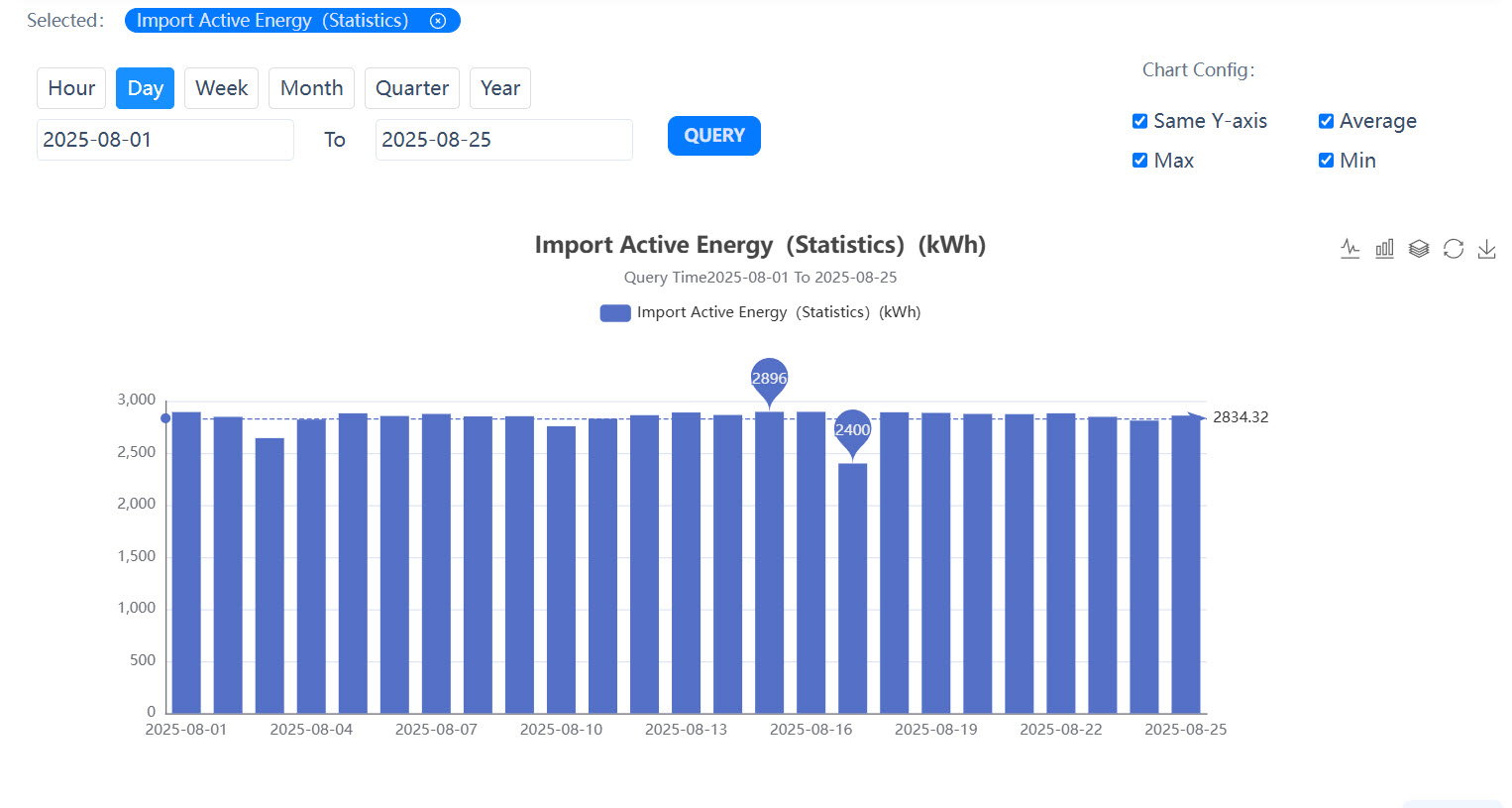

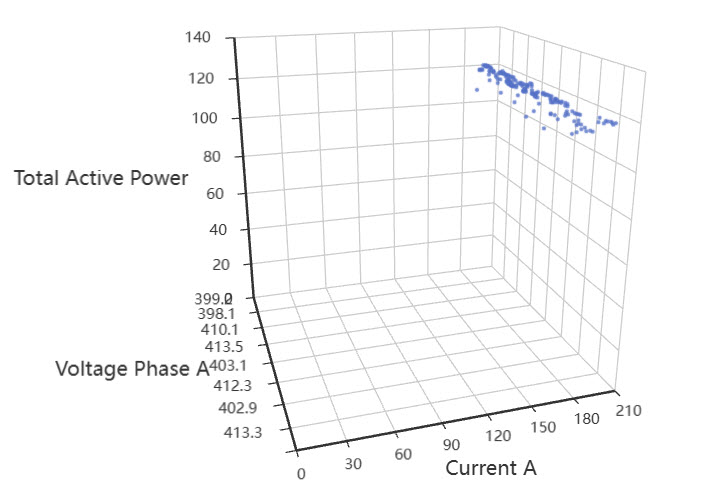

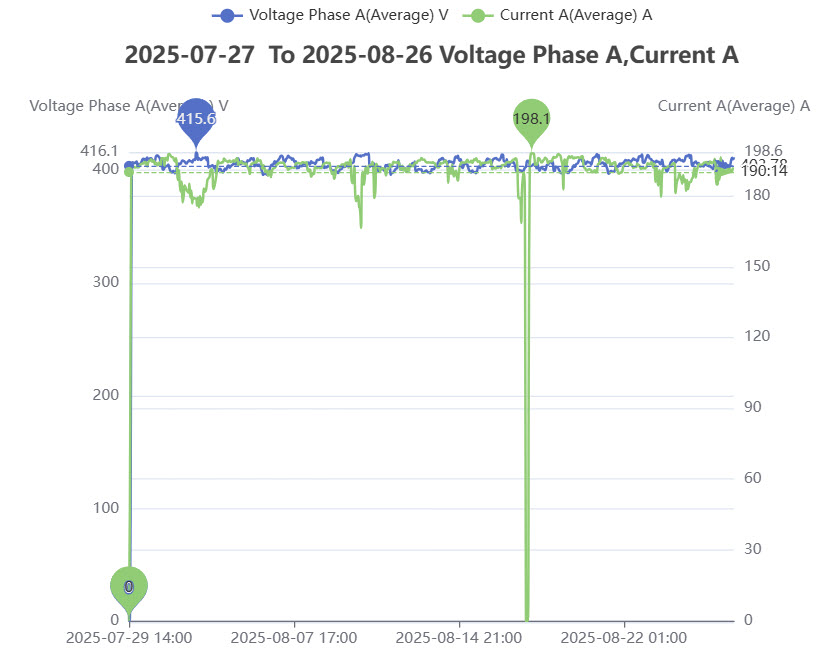

Pls. refer to above DPM Power measurement PDF report with iIOT remote monitoring and our expert voice MP3 file to explain in details

SDT Small DIN rail power analyzer is designed special for energy management system (EMS). By its DIN rail installation, it is very suitable to be used with breakers, contactors. Besides electrical energies, it can measure all the parameters on the electrical networks, such as currents, voltages, active powers, reactive powers, apparent powers, frequency, power factors and 4 quadrant energies.

We may connect it with current transformer(CT) or voltage transformer(PT). It has a 8 digits LCD display. By its front keys, you may easily check different display data or program its parameters. It has a RS485 interface to transfer the measuring data to other master devices, such as PLC, data center computers.
SDT DPM has good cost performance, as an intelligent unit and a digital electrical data collection unit, it has been widely used in many intelligent systems.
